Making a script tool

User input variables that you retrieve through GetParameterAsText() make your script very easy to convert into a tool in ArcGIS. A few people know how to alter Python code, a few more can run a Python script and supply user input variables, but almost all ArcGIS users know how to open ArcToolbox and run a tool. To finish off this lesson, we’ll take the previous script and make it into a tool that can easily be run in ArcGIS.

Before you begin this exercise I strongly recommend that you read the first four topics in the ArcGIS Desktop Help sectionCreating script tools with Python scripts. You likely will not understand all the parts of this section yet, but it will give you some familiarity with script tools that will be helpful during the exercise.

Follow these steps to make a script tool:

1.     Copy the code from Lesson 1.6.4 "Example: Creating Buffers" into a new PythonWin script and save it as buffer_user_input.py.

2.     Open ArcMap and display the Catalog window.

3.     Expand the nodes Toolboxes > My Toolboxes.

4.     Right-click My Toolboxes and click New > Toolbox.

5.     Give your toolbox a name, such as "MyScriptTools".

6.     Right-click your new toolbox and click Add > Script.

7.     Fill in the Name, Label, and Description properties for your Script tool as shown below:

8.     Click Next and supply the Script File. To do this, click the folder icon and browse to your buffer_user_input.py file.

.COM @ Rs.149 for 1st year

9.     Click Next and examine the dialog that appears. This is where you can specify the parameters of your script. The parameters are the values for which you used arcpy.GetParameterAsText() in your script, namely inPath, outPath, and bufferMiles. You will use this dialog to list those parameters in the same order, except you can give the parameters names that are easier to understand.

10.   In the Display Name column that you see at the top of this wizard, click the first empty cell and type “Input Feature Class”.

11.   Immediately to the right, click the first empty cell in the Data Type column and choose Feature Class. Here is one of the huge advantages of making a script tool. Instead of accepting any string as input (which could contain an error), your tool will now enforce the requirement that a feature class be used as input. ArcGIS will help you by confirming that the value entered is a path to a valid feature class. It will even supply the users of your tool with a browse button so they can browse to the feature class.

12.   Just as you did in the previous steps, add a second parameter named “Output Feature Class”. The data type should again be Feature Class.

13.   With the Output Feature Class parameter still highlighted, look down at the Parameter Properties portion of the dialog. Change theDirection property to Output.

14.   Add a third property named “Buffer Distance”. Choose Linear Unit as the data type. This data type will allow the user of the tool to select both the distance value and the units (for example, miles, kilometers, etc.).

15.   With the Buffer Distance parameter still highlighted, look down at the Parameter Properties section again. Set the Default property to “5 Miles” (do not include the quotes). Your dialog should look like what you see below:

16.   Click Finish and, in the Catalog window, open your new script tool by double-clicking it.

17.   Try out your tool by buffering any feature class on your computer. Notice that once you supply the input feature class, an output feature class path is suggested for you. This is because you specifically set Output Feature Class as an output parameter. Also, when the tool is complete, examine the Results window for the custom message "All done!" that you added in your code.

This is a very simple example and obviously you could just run the out-of-the-box Buffer tool with similar results. Normally when you create a script tool, it will be backed with a script that runs a combination of tools and applies some logic that makes those tools uniquely useful.

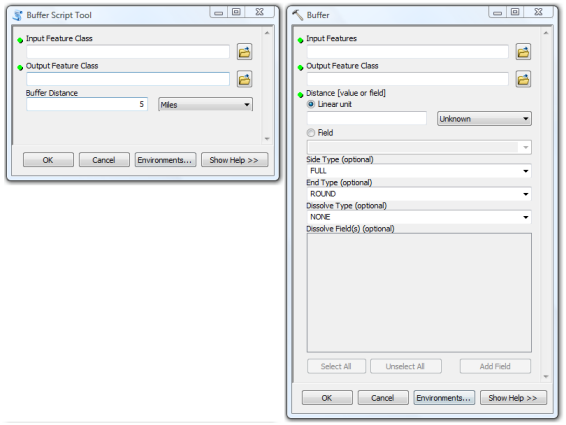

There’s another benefit to this example, though. Notice the simplicity of our script tool dialog compared to the main Buffer tool:

At some point you may need to design a set of tools for beginning GIS users where only the most necessary parameters are exposed. You may also do this to enforce quality control if you know that some of the parameters must always be set to certain defaults and you want to avoid the scenario where a beginning user (or a rogue user) might change the required values. A simple script tool is effective for simplifying the tool dialog in this way.
